☁️ Cloudflare Configuration

DDNS Setup

  1. Log in to the Cloudflare Dashboard.
  2. Click the User Icon (top right) > My Profile.
  3. Select API Tokens from the left sidebar.
  4. Click the Create Token button.
  5. Find the "Edit zone DNS" template and click Use template.

Cloudflare-APIZone

The default template is insufficient for our setup because the caddy-dynamicdns plugin requires the ability to "Read" the Zone metadata to find the Zone ID.

Zone Permissions

Modify Permissions list:

Permission Type Permission Name Access Level Purpose
Zone DNS Edit Allows Caddy to update A records (DDNS) and create TXT records (SSL).
Zone Zone Read Critical Fix: Allows Caddy to lookup the "Zone ID" for mydomain.xyz.

Note: If Zone:Zone:Read is missing, Caddy will fail with expected 1 zone, got 0 error.

Restrict this token so it cannot touch any other domains we might own.

  • Operator: Include
  • Type: Specific zone
  • Value: mydomain.xyz

Finalize:

  1. Click Continue to summary.
  2. Click Create Token.
  3. Copy the token immediately. You will never see it again.

  4. The generated API token is stored in the .env

    CLOUDFLARE_API_TOKEN=<PASTE_YOUR_TOKEN_HERE>

DNS Records Setup

All records are "Orange Clouded" (Proxied) to leverage Cloudflare's WAF and Zero Trust layers.

Type Name Content Proxy Status Purpose
A jellyfin 1.1.1.1 (Placeholder) DNS Only Media Streaming
A requests 1.1.1.1 (Placeholder) DNS Only Jellyseerr
A gotify 1.1.1.1 (Placeholder) DNS Only Notifications
A auth1 1.1.1.1 (Placeholder) DNS Only Authentication

Note: Caddy's dynamic_dns module will automatically update the 1.1.1.1 IP to our actual IP.

IPv6 Support (AAAA Records)

While previously disabled, IPv6 is now enabled for all subdomains.

  • Confirmed stable connectivity over SG 5G networks

  • Crucial Fix: Connectivity issues were historically caused by script-injection conflicts (Rocket Loader) rather than routing.

Security & Zero Trust Set Up

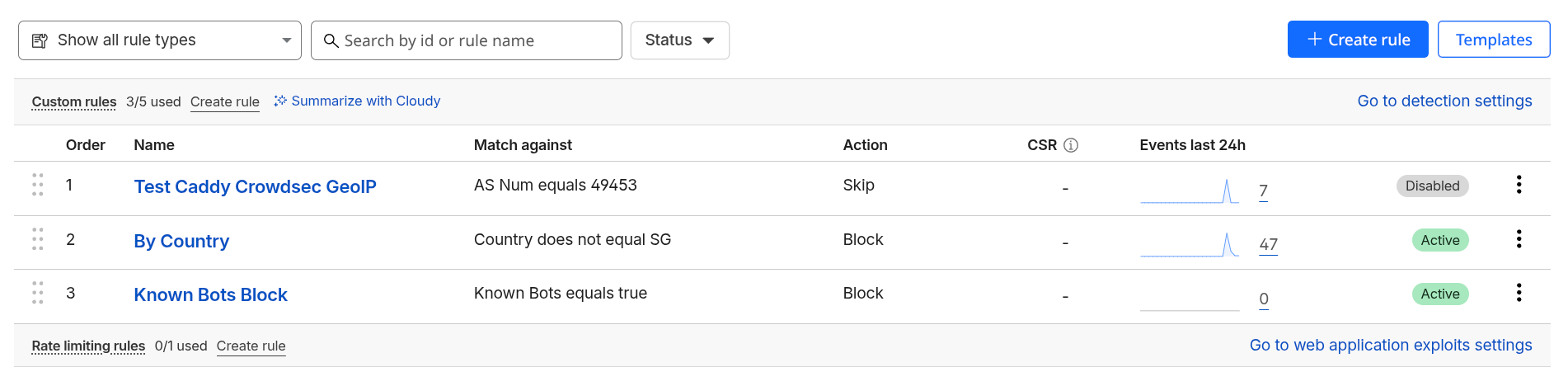

WAF Security

Rules are processed in top-to-bottom order to protect the origin.

Domain > Security > Security Rules

Order Name Logic Action
1 By Country Country does not equal SG Block
2 Known Bots Known Bots equals true Block

Testing Caddy/Maxmind Geo-IP

During testing, a temporary Skip rule can be added for specific VPN ASNs (e.g., AS49453) and using my mobile phone with overseas server, to verify local Caddy Geo-IP fail-safes.

Zero Trust Applicationsb

Identity-based protection for all services.

Account/Home > Zero Trust > Access Control > Policies/Applications

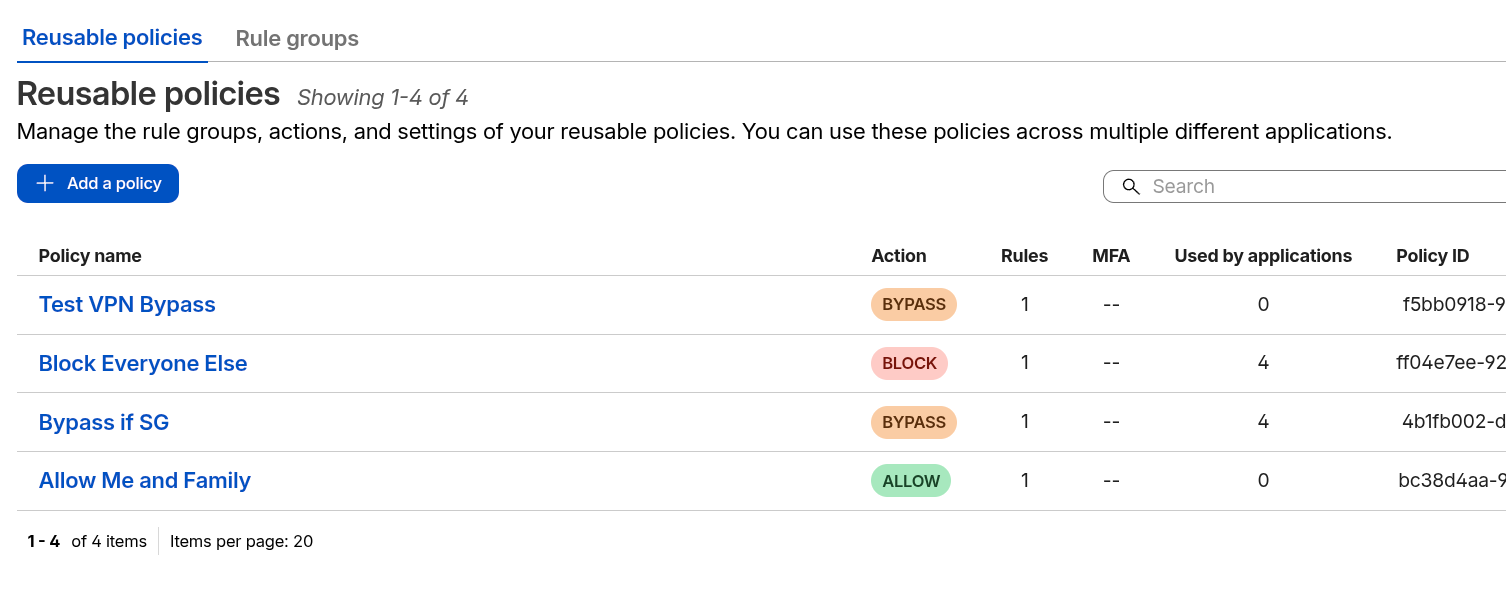

Create Policies:

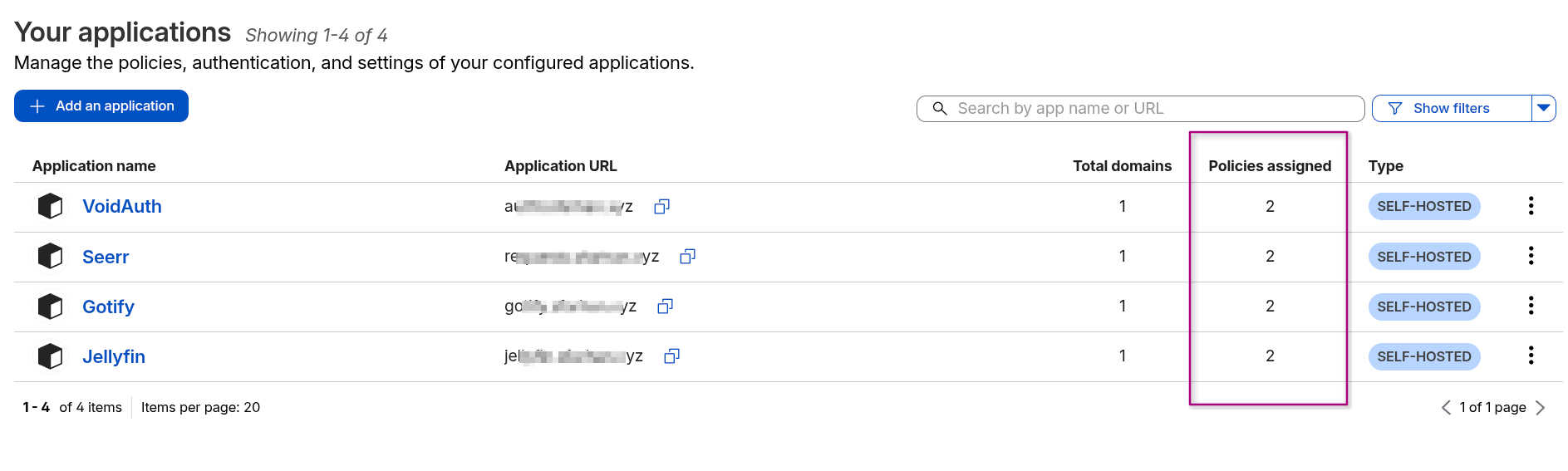

Attach Policies to Applications:

Compatibility with Rocket Loader

Rocket Loader Conflict with VoidAuth (The "Black Screen")

Rocket Loader must be disabled for authentication subdomains due to Content Security Policy (CSP) violations.

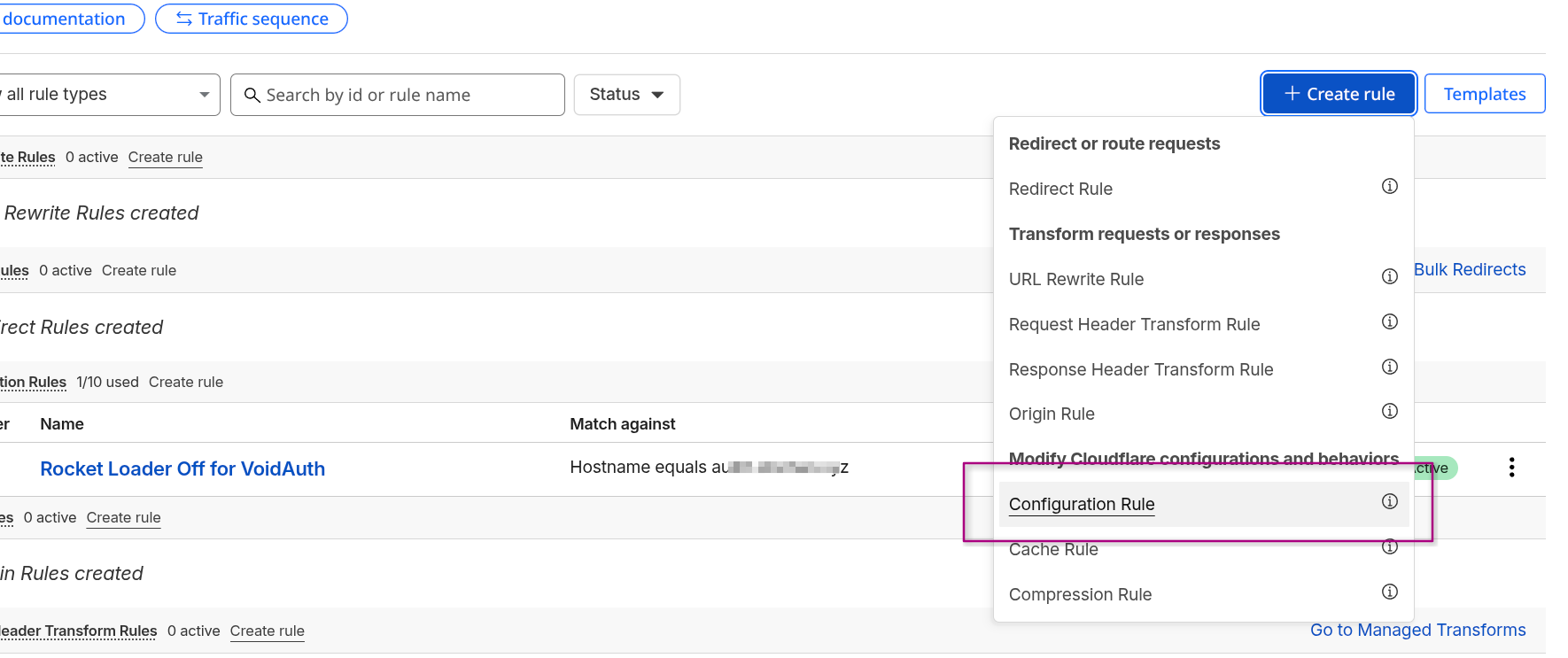

Domain > Rules > Overview > Create Rule > Configuration Rule

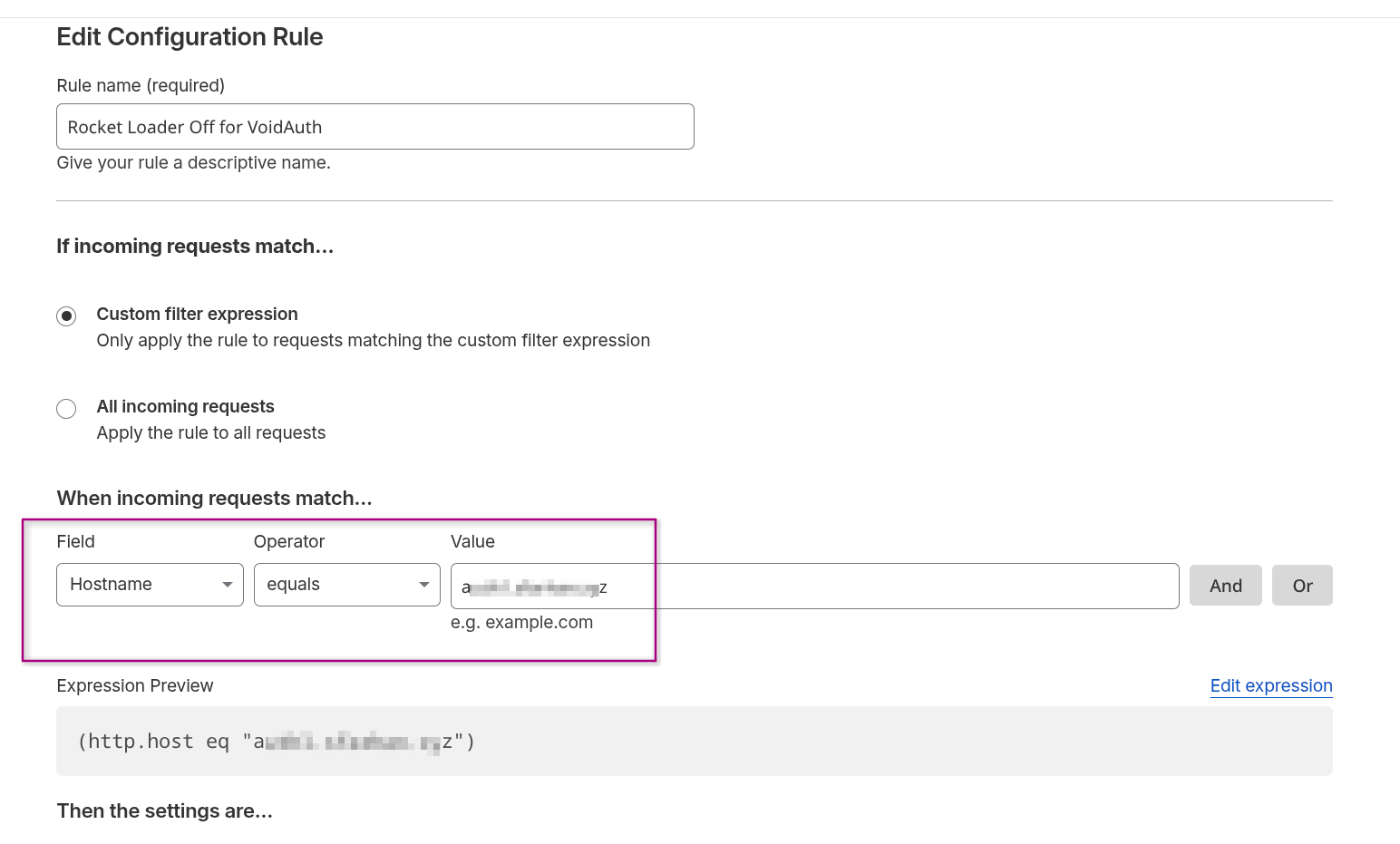

Enter Hostname of the Voidauth's instance subdomain Equals to the URL.

VoidAuth Strict CSP

When inspecting the browser, as I cannot access Voidauth's instance, noticed that the console error indicated that Rocket Loader attempts to inject rocket-loader.min.js - which violates VoidAuth's strict-dynamic CSP, thus causing the browser to block all scripts and render a blank/black screen.

Other Cloudflare's Settings

  • WebSockets: Enabled (Required for VoidAuth and Gotify real-time streams).
  • Pseudo IPv4: Off (Ensures Caddy sees the clean Cf-Connecting-Ip).
