🐳 Home Lab Docker Architecture

"A modular, automated homelab, running a media server on Arch Linux (CachyOS), featuring a split-network security model and atomic-move storage."

This is put together in Feb 2026, for the future me when I am ready to move what I have to a always-on homelab/server that I am putting together. And if it somehow helps others on their own journey, its awesome too!

This documentation contains the entire infrastructure: compose files, hows-tos, automation scripts for all current running services.

---

🖥️ Current Hardware Specifications

Component	Detail
OS	Daily Driver - CachyOS
MOBO	X870 Asrock Pro Rs
CPU	AMD Ryzen 5 7600X
RAM	32GB DDR5
GPU	Radeon RX 5600 XT (Transcoding)
Storage	2x 1TB NVMe LVM Pool (/mnt/pool01) + 500GB Crucial SSD (/mnt/CrucialBackup)
Network Card	Marvell AQC113C 10GbE

Quick Navigation

Category	Topic	Description
🏗️ Global	Deployment Guide	Start Here. Zero-to-Hero guide for host OS setup (Docker install, LVM, DNS, Firewall)
	Network Architecture	Explaining the custom docker network vs. service:gluetun split-tunnel design
	Storage & LVM	How the NVMe pool is aggregated and the "Atomic Move" logic
	Host Firewall	The firewalld rules creating the "Software VLAN" to block LAN access
	Backups	Dockerapps Local Mirror/Rsync, Kopia x Cloudflare R2 & OS Rescuezilla
	Troubleshooting	"War Stories" log: Solving exit code 137, 401 healthchecks, and race conditions
🛡️ Gateway	Overview	Overview and Directory setup
	Caddy	Reverse proxy config, GeoIP filtering, and SSL hardening
	CrowdSec	IPS configuration, bouncer setup, and acquisition rules
	VoidAuth	Identity provider setup
	Tailscale	Setup for remote access
	Cloudflare DDNS	Global Doc: Managing DNS records and API tokens for the proxy.
🍿 Media	Overview	Overview on the Architecture setup
	Jellyfin & Seerr	Setup, hardware transcoding (AMD GPU) and client connectivity
	The VPN & *Arr Stack	Radarr/Sonarr setup, Prowlarr/Indexers, and Gluetun tunneling
	Custom Anime Profiles via Profilarr	Profilarr setup for Anime Grabs
	The "Atomic Move" Logic	Technical deep-dive on how hardlinks work in this specific setup
📊 Utilities	Overview	Overview on the Architecture setup
	Monitoring Stack Overview	Overview on the Homepage, WUD, Dozzle behind Socket Proxy
	Beszel	Setting up the lightweight agent and mapping LVM metrics.
	Kopia	Dedup snapshot strategy to Cloudflare R2.
	GoAccess	Real-time visual web log analyzer for Caddy.
	Gotify	Self-hosted push notification setup.
Scripts	Pull-All Images	Auto-Pull all services' images
	Recreate-All	Auto docker compose up -d --force-recreate for all

Quick Start

If setting this server up from scratch, do read the Deployment Guide. It covers the "Invisible" host OS configurations (Firewall, DNS) required before Docker can start.

👉 READ: Deployment & Zero-to-Hero Guide

Compose File Configs

For each of the services listed in Gateway, Media and Utilities sections, the compose configs are available.

Architecture Highlights

The "Two-Zone" Security Model

We bypass the default Docker bridge to enforce strict isolation

• Zone 1 (Trusted): 172.20.0.0/24. Static IPs/Internal apps talk here.
• Zone 2 (VPN Bubble): P2P clients (qBit/Transmission) have zero IP address. They utilize network_mode: service:gluetun, routing 100% of traffic through AirVPN (WireGuard)

"Atomic Moves" Filesystem

• Concept: Downloads and Media Library reside on the same LVM Logical Volume (/mnt/pool01/media)
• Result: Importing a 50GB file is instant and consumes 0 bytes of extra space via Hardlinks

Zero-Touch Automation

• Pipeline: Seerr (Request) → Radarr (Monitored) → Prowlarr (Search) → Gluetun-Qbit (Download) → Radarr (Import) | Bazaarr (Substitle) → Jellyfin (Stream) → Gotify (Notify)
• Result: A fully automated experience where content appears automatically after requesting.

Defense-in-Depth

1. Kernel: Firewalld drops all Docker-to-LAN traffic (Software VLAN).
2. Ingress: Caddy handles SSL & GeoIP blocking (Singapore Only).
3. Behavior: CrowdSec bans IPs showing aggressive behavior (brute force, scanners).
4. Identity: VoidAuth enforces authentication for selected publicly exposed services/containers

---

Tech Stack / Tools

Expand to View: Tech Stack

Logo	Name	Description
	CachyOS	Base OS. An Arch Linux-based distribution
	Docker	Runtime. Containerization engine for isolating application services.
	Caddy	Ingress. Secure reverse proxy with automatic HTTPS and GeoIP filtering.
	CrowdSec	Security. Collaborative IPS detecting and blocking aggressive IP behaviors.
	VoidAuth	Identity. Lightweight OIDC provider handling Single Sign-On (SSO).
	Gluetun	VPN Tunnel. AirVPN (WireGuard) client acting as a sidecar for secure downloads.
	Tailscale	Mesh Network. Zero-config VPN for secure remote access and management.
	Jellyfin	Media Server. Streaming server.
	Seerr	Requests. "Netflix-style" frontend for automated content discovery.
	Radarr	Automation. Movie collection manager and downloader integration.
	Sonarr	Automation. TV Series management and calendar automation.
	Profilarr	Management. Synchronizes quality profiles across *Arr applications.
	Prowlarr	Indexers. Centralized management for Torrent trackers.
	FlareSolverr	Proxy. Solves Cloudflare challenges to allow Prowlarr indexer access.
	qBittorrent	Downloader. BitTorrent client routed through VPN.
	Transmission	Downloader. BitTorrent client routed through VPN.
	Beszel	Monitoring. Lightweight agent tracking LVM, CPU, and Docker metrics.
	Dozzle	Monitoring. WebUI to monitor Docker logs.
	WUD	Monitoring. Watches and alerts for images updates.
	Speedtest	Monitoring. Automated internet bandwidth and latency tracking.
	Homepage	Dashboard. Central start page with live service widgets.
	Kopia	Backup. Dedup backups to Cloudflare R2.
	GoAccess	Analytics. Real-time visual web log analyzer for Caddy.
	Gotify	Notifications WebUI and Backend Server Notification tool.
	Cloudflare	Network. DNS management, DDNS updates, and Object Storage (R2).

Static IP Allocation Map

Subnet: 172.20.0.0/24 | Gateway: 172.20.0.1

Expand to View: Master IP Table

IP Address	Service	Stack	Port
GATEWAY
172.20.0.11	Gluetun (VPN)	gateway	-
172.20.0.23	Caddy (Proxy)	gateway	80/443
172.20.0.24	CrowdSec	gateway	8080
172.20.0.37	VoidAuth	gateway	3002
Host Mode	Tailscale	gateway	-
MEDIA
172.20.0.10	Jellyfin	media	8096
172.20.0.12	Seerr	media	5055
172.20.0.13	Radarr	media	7878
172.20.0.14	Sonarr	media	8989
172.20.0.15	Bazarr	media	6767
172.20.0.19	Profilarr	media	6868
172.20.0.20	Prowlarr	media	9696
172.20.0.21	FlareSolverr	media	8191
172.20.0.22	Jackett	media	9117
Sidecar	qBittorrent	media	8080
Sidecar	Transmission	media	9091
Sidecar	Speedtest	media	8085
UTILITIES / OPS / MONITORING
172.20.0.16	Gotify	ops	8081
172.20.0.17	Arcane	ops	3552
172.20.0.25	Homepage	ops	3000
172.20.0.26	Dozzle	ops	9090
172.20.0.27	WUD	ops	3001
172.20.0.28	Socket Proxy	ops	2375
172.20.0.29	GoAccess	ops	7890
172.20.0.31	Beszel Hub	ops	8090
172.20.0.32	Beszel Agent	ops	-
172.20.0.33	Kopia	ops	51515

---

📸 Gallery

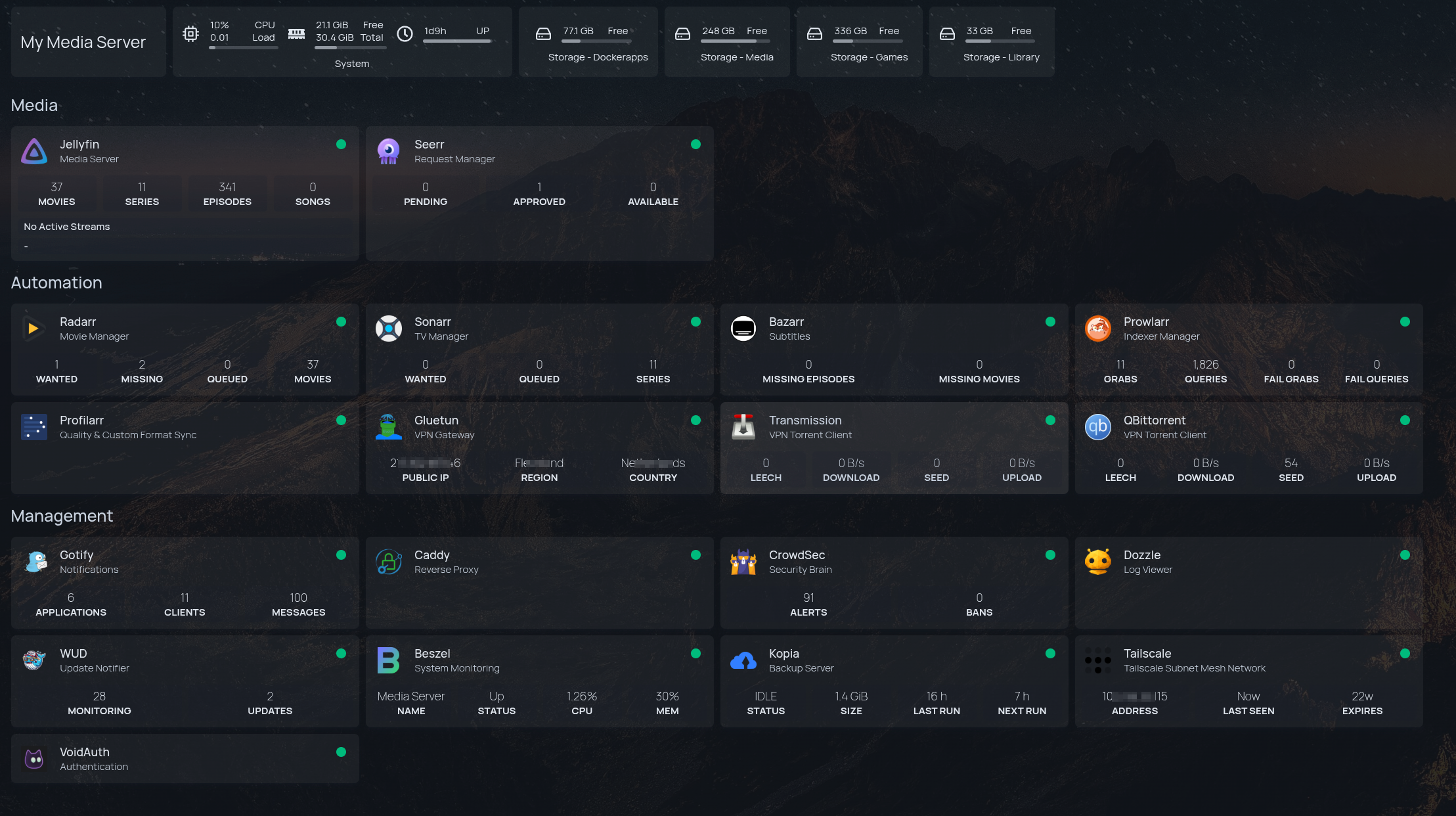

Homepage Dashboard

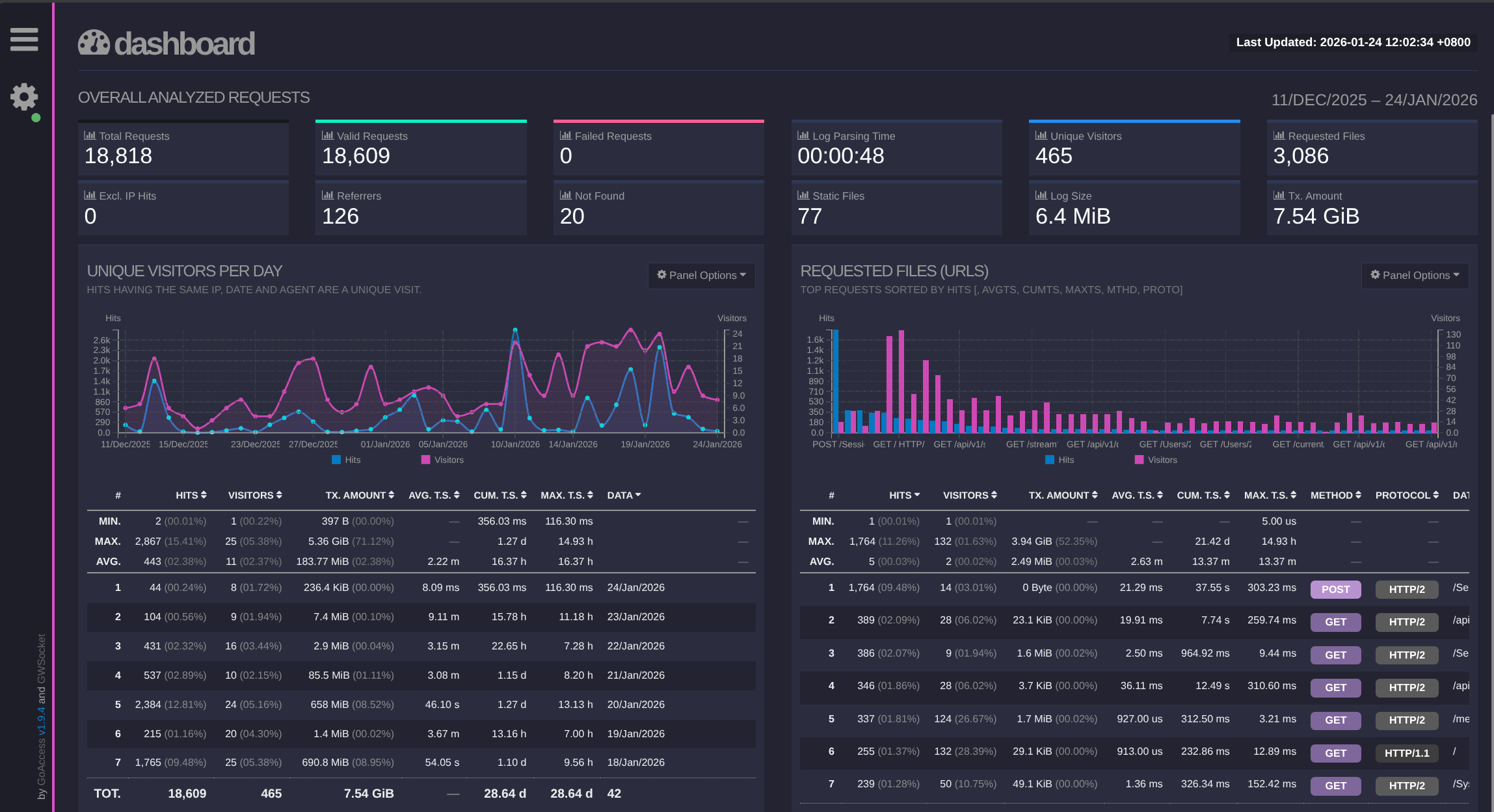

GoAccess

VoidAuth

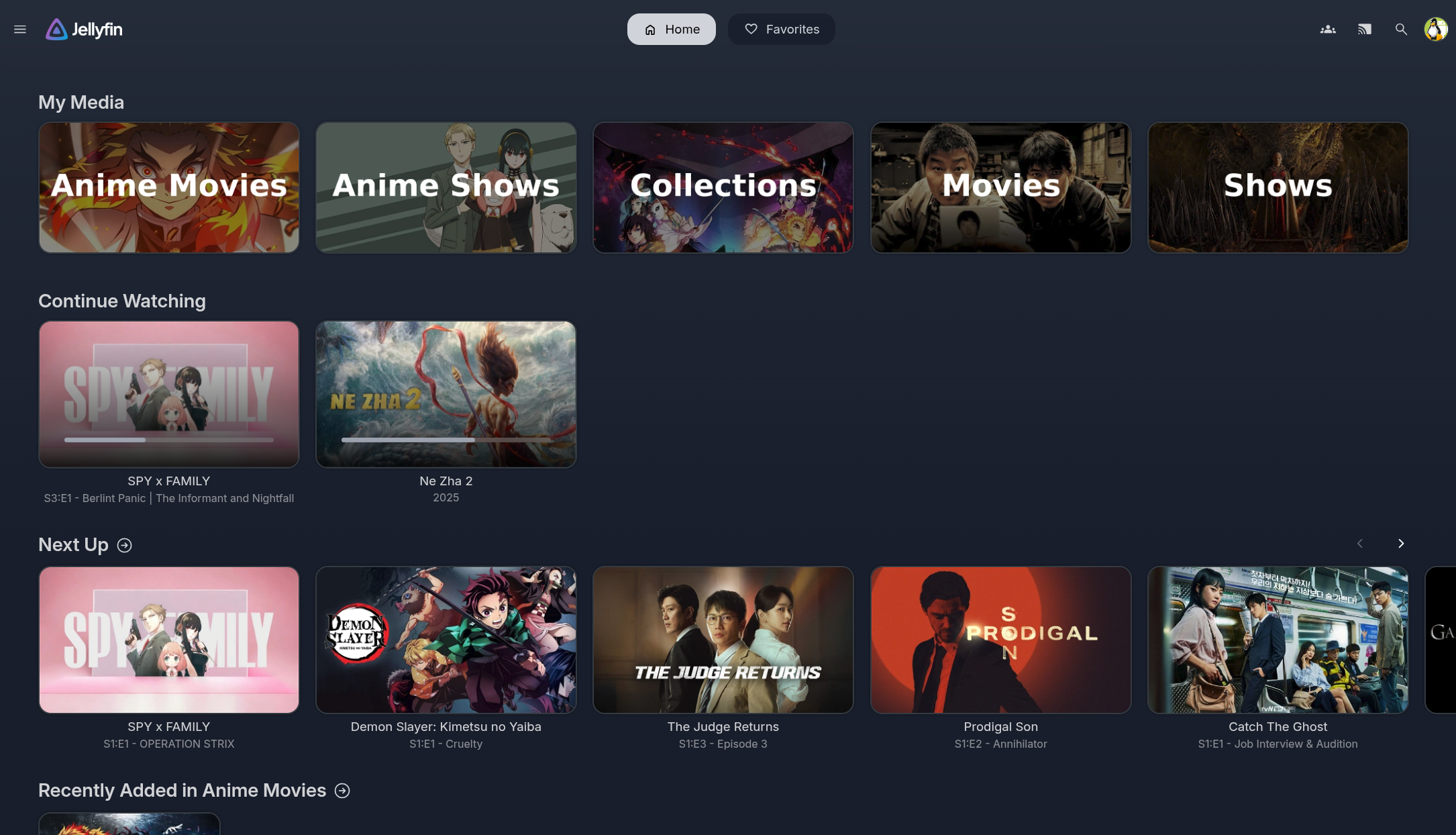

Jellyfin

Seerr

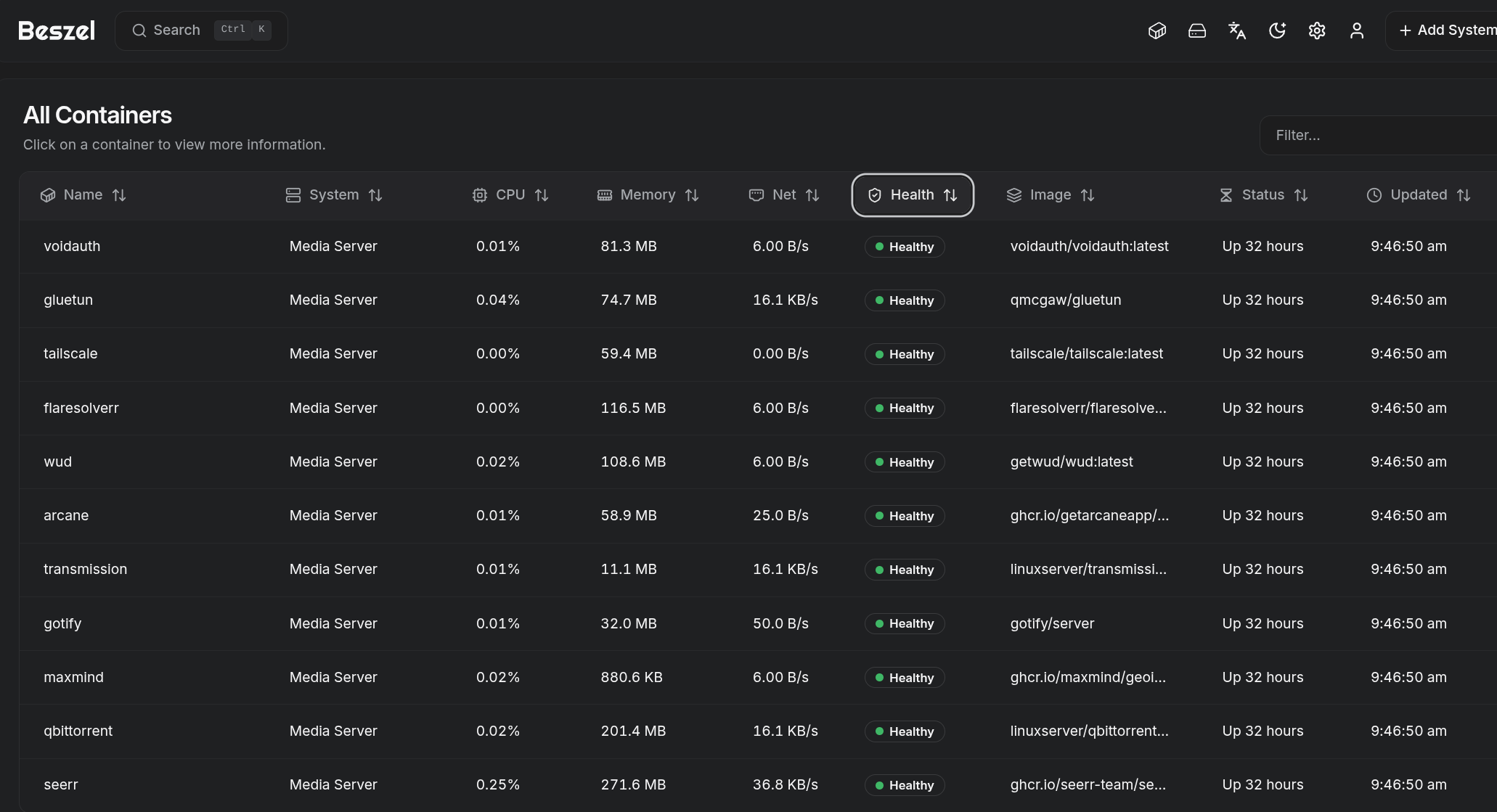

Beszel
